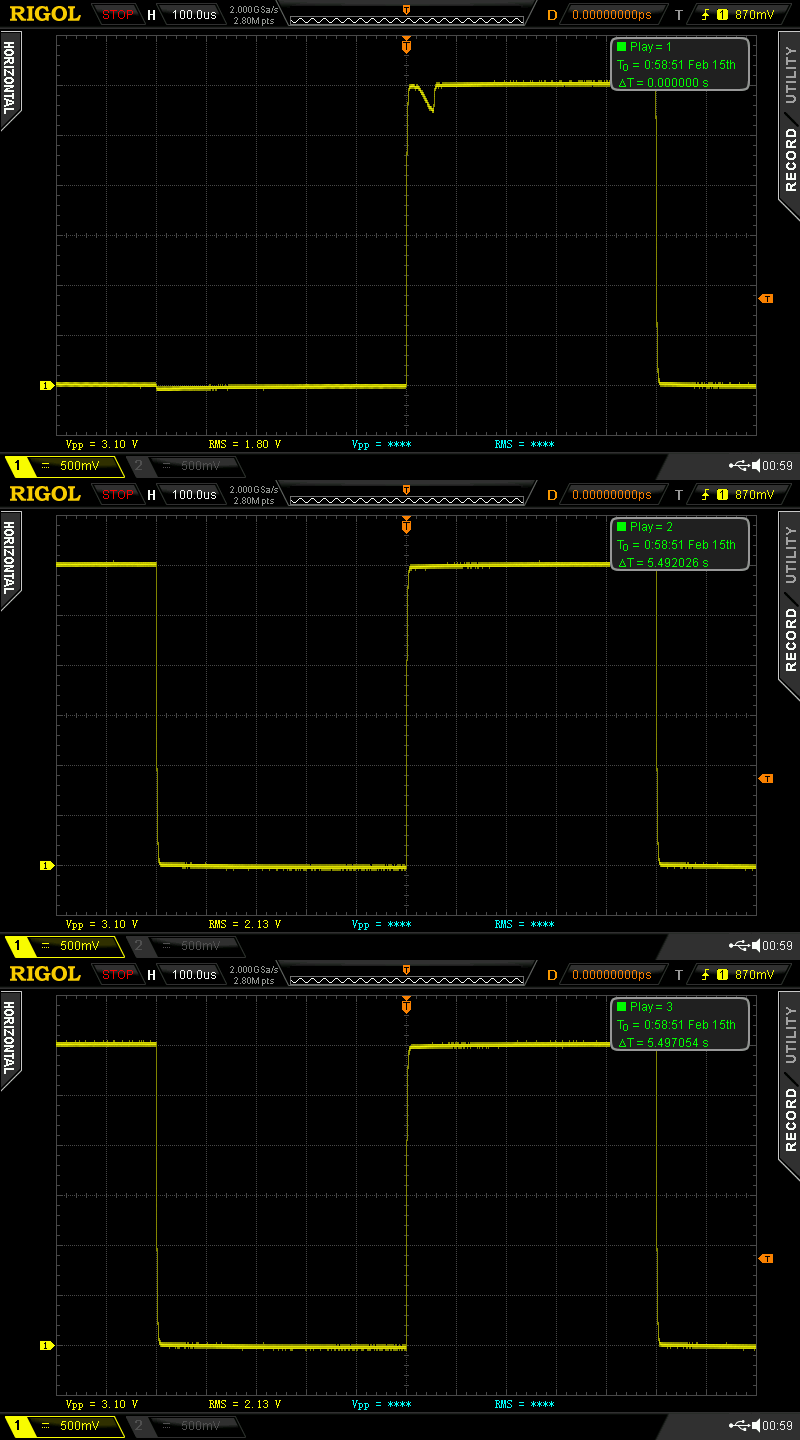

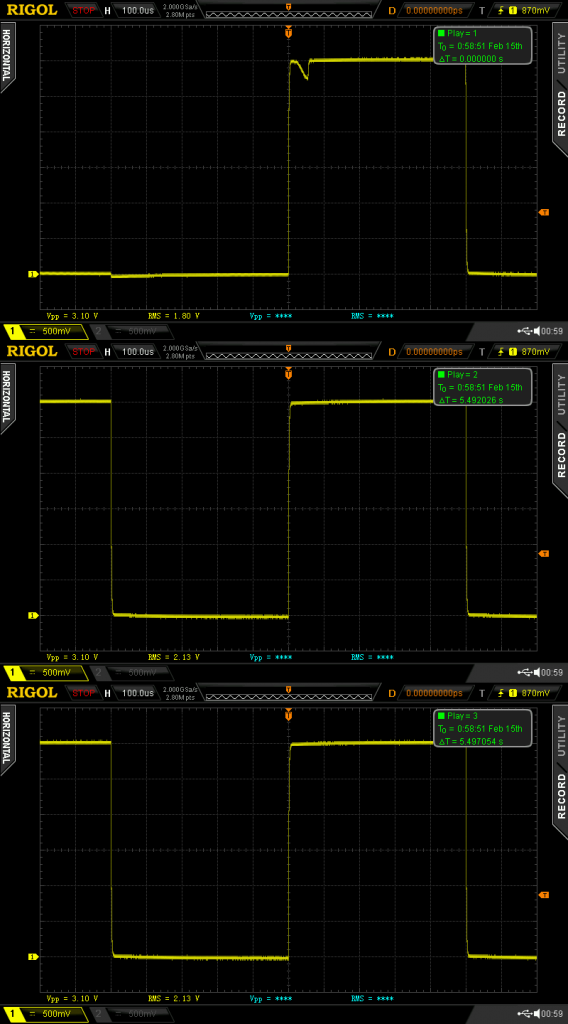

This is a demonstration of the record time bug. The timer starts when you push the button, not when first trigger occurs. Then the first frame is not really set the appropriate time, but it’s set to time offset 0. So it seems that the time between frame 1 and 2 is 5 seconds when it’s actually 5-6ms
